How to turn a plywood sheet waste into office equipment?

How to turn a plywood sheet waste into office equipment?

REQUIREMENTS

  • Laser cutting machine (Ortur laser master 2 pro s2 LU2-4 LF) with air assist
  • Lightburn Software to control the machine
  • Inskscape Software to draw the product
  • Plywood (L=350mm, l=300mm, thickness=4mm)

SETTINGS

CUTTING PARAMETERS

  • Speed=200mm/min
  • Power=100%
  • Air assist = YES
  • Number of passes=2

ENGRAVNG PARAMETERS

  • Speed=6000mm/min
  • Power=70%
  • Air assist = YES
  • Number of passes= 1

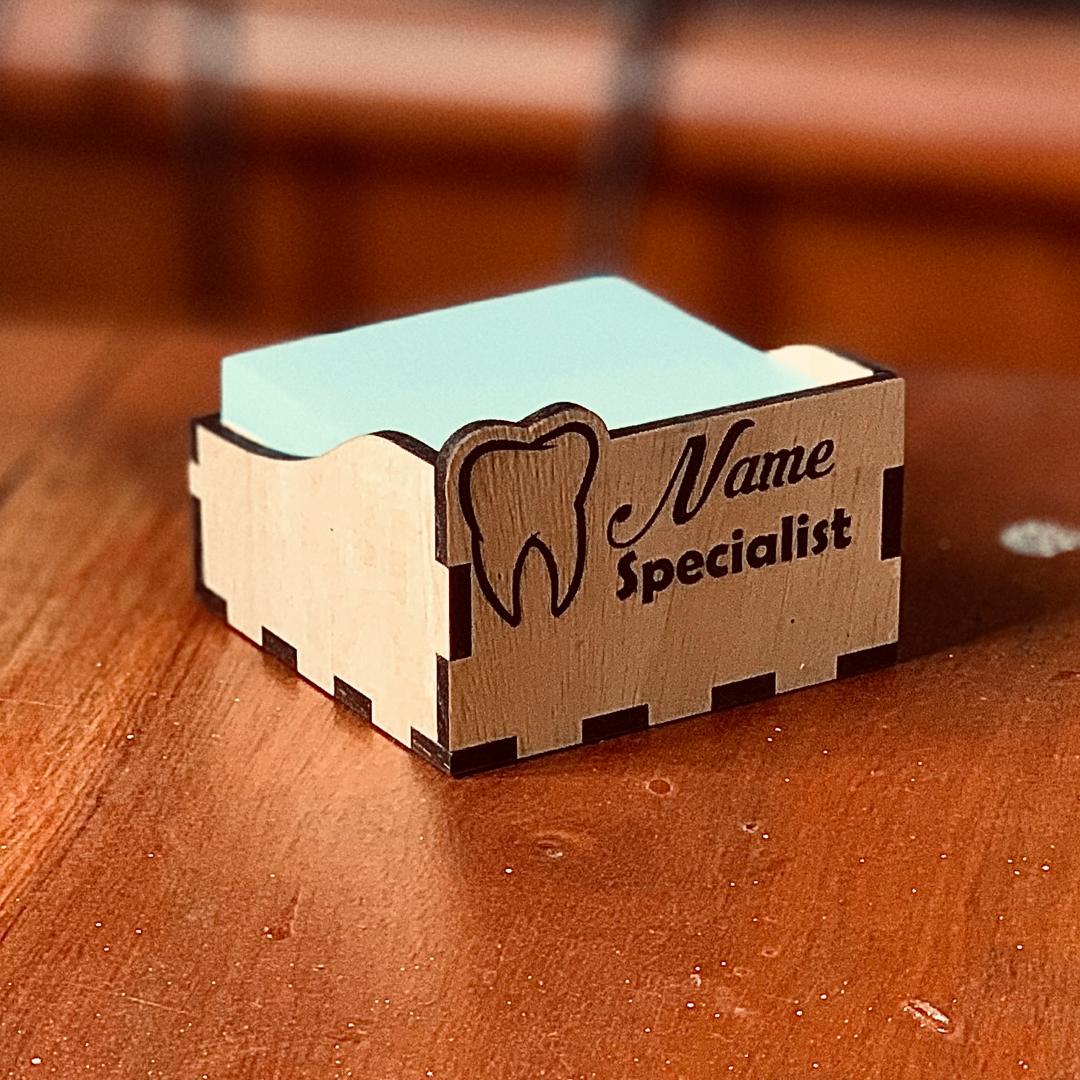

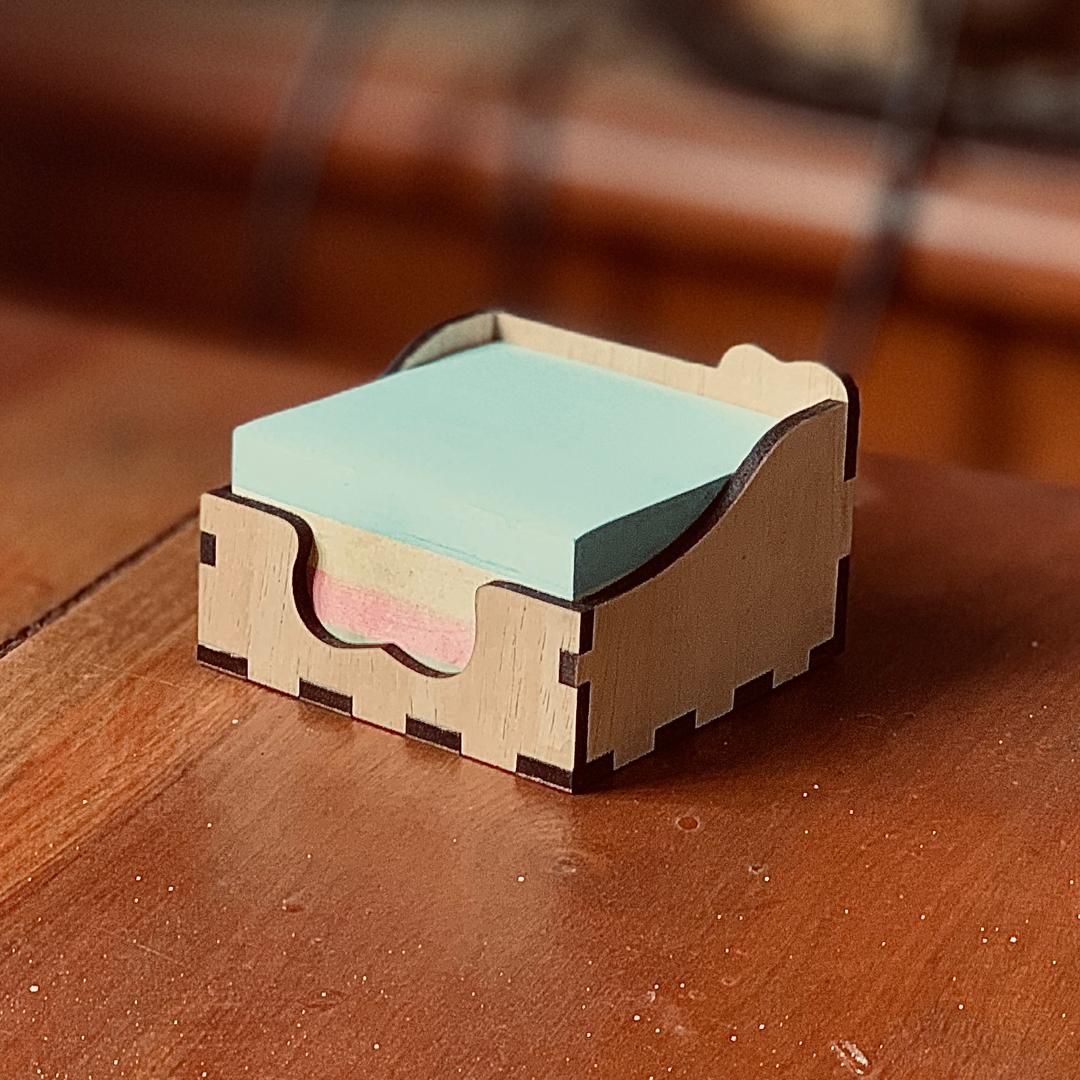

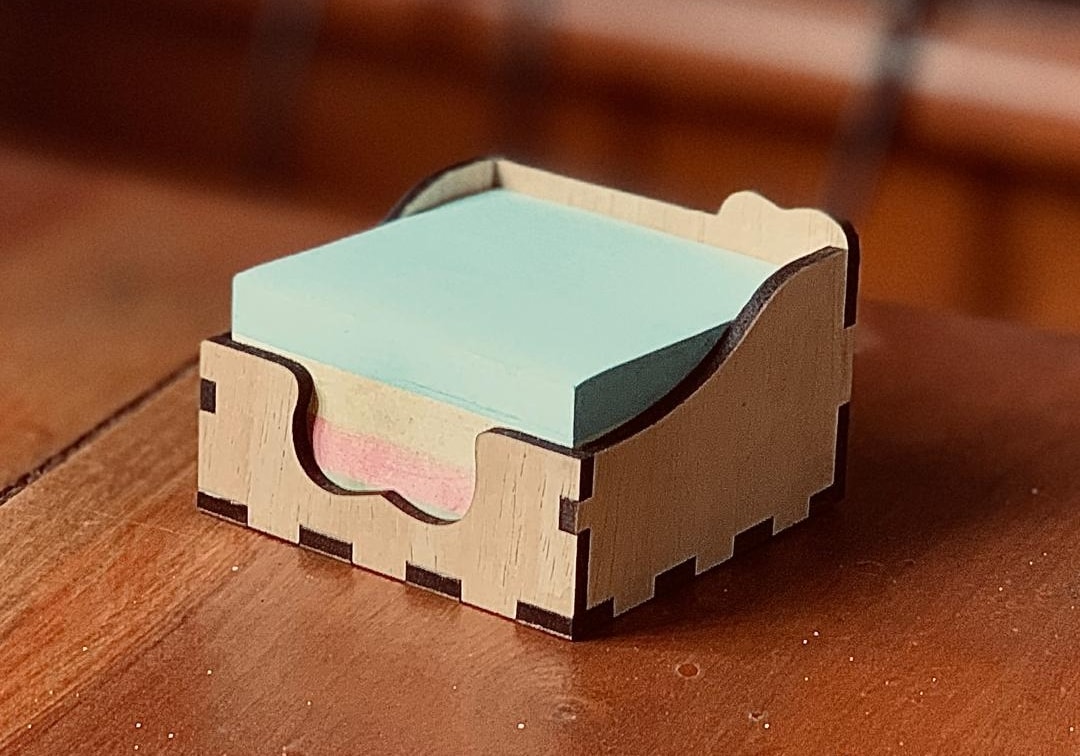

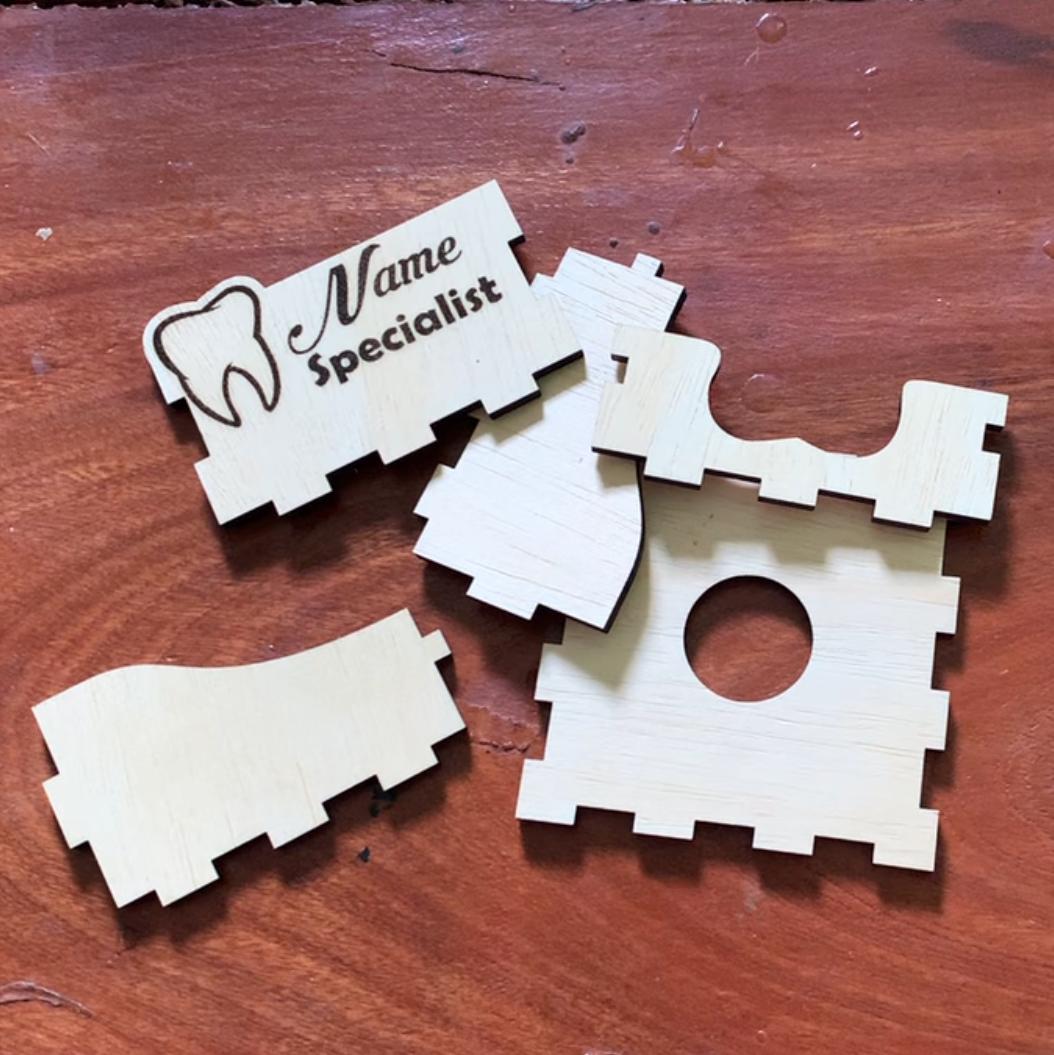

PHOTOS
